Square Tube Post: field notes, specs, and what buyers are really choosing in 2025

If you’re weighing post options for perimeter fencing, handrails, or light-duty barriers, you’ve probably stumbled across the [square post] debate. I’ve toured a few yards and coating lines lately; demand is shifting toward cleaner welds, thicker powder coats, and less fiddly hardware. In fact, a lot of facility managers now ask for pre-matched RAL colors out of the box—saves time on site and looks better than brush touch-ups, to be honest.

What it is (and why it’s getting picked)

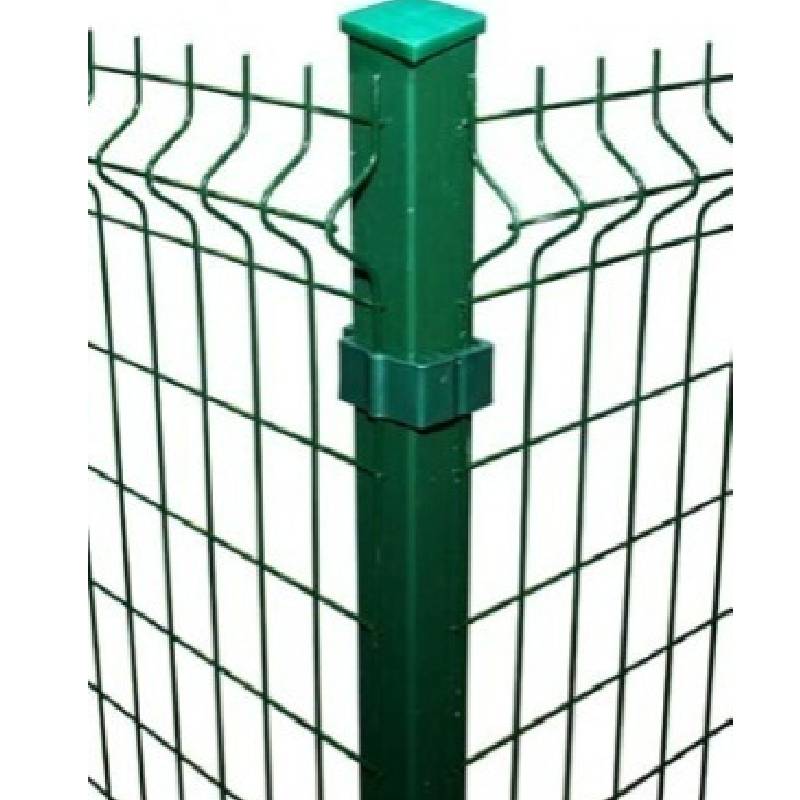

Originating from China and typically branded as Square Tube Post, this format uses hot-dipped galvanized steel plate with a powder-coated finish, plus a plastic cap and PVC wire clips with stainless washer. Many customers say it simply installs faster. And yes, [square post] geometry resists twist better than round in panel fencing, especially with mesh or ornamental sections.

Product specifications (typical, real-world use may vary)

How it’s made (quick process flow)

Materials: pre-galvanized steel plate to EN 10346, formed and seam-welded to EN 10219-style tolerances. Methods: degrease and phosphate, then polyester powder coat (C3–C4 systems per ISO 12944). Testing: salt-spray ASTM B117 (≥500–1,000 h typical), adhesion ASTM D3359 (4B–5B), impact ISO 6272, UV ISO 16474-3. Service life: ≈10–15 years in C3 environments; up to 20 years with thicker coats and proper maintenance. Industries: logistics parks, schools, utilities, hospitality, light rail perimeters.

Where it’s used (and why)

Application scenarios include welded mesh fencing, privacy panels, acoustic barriers, small gates, and even solar farm perimeters. Advantages of a [square post] setup: easier bracket alignment, better panel seating, and—this surprised me—fewer call-backs for rattling after wind storms.

Customization checklist

• Section and wall thickness for local wind/snow loads
• RAL match (6005/7016/9005/8017 standard; others on request)
• Base plates (laser-cut, slotted) or direct-bury with caps
• Clips: PVC with stainless washer; tamper-resistant options

Vendor comparison (indicative)

Field data and feedback

Recent pull/torque checks on clip sets showed ≈1.5–2.0 kN retention with stainless-backed PVC, and no red rust after 720 h salt-spray on intact coating lines (lab data; site damage changes outcomes). Facility managers like the cleaner look and the fact that [square post] caps stop water ingress.

Mini case studies

EU logistics park (C3): 60×60×2.0 mm posts, RAL7016, base-plated. Result: faster panel alignment; zero repaint after first winter.

Coastal resort (C4): 80×80×2.5 mm, RAL9005. Extra powder build and sealed fasteners. After 18 months: no blistering; minor cosmetic scuffs only—guest feedback was “surprisingly premium.”

Certifications and standards to ask for

• ISO 9001 factory QA; material to EN 10346
• Coating guidance per ISO 12944 (C3–C4); galvanizing per ISO 1461
• Salt spray ASTM B117; adhesion ASTM D3359; impact ISO 6272; UV ISO 16474-3

References:

1. ISO 1461: Hot dip galvanized coatings — Specifications and test methods. iso.org
2. ISO 12944: Paints and varnishes — Corrosion protection of steel structures. iso.org
3. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. astm.org
4. ISO 9001: Quality management systems — Requirements. iso.org
