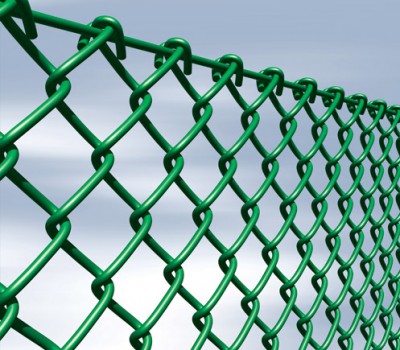

Pagar Rantai Tautan

Pagar rantai diproduksi dengan kawat besi galvanis berkualitas tinggi Atau kawat besi galvanis + kawat berlapis PVC berkualitas tinggi, dan biasanya digunakan di lapangan, pertanian, perkebunan, kebun anggur, lapangan olahraga, tempat privasi yang lebih tinggi, dll.

HUBUNGI SEKARANG UNDUH PDF

Detail

Tag

Melayani:

Pagar rantai disambut dengan kualitasnya yang tinggi, perlengkapannya sederhana dan biayanya lebih rendah, pemasangan dan pemeliharaannya mudah, ekonomis dan banyak digunakan di berbagai bidang.

Unique and professional packaging supplied In order to help customers opening rolls smoothly and installation convenient and time-saving, Providing matching accessories that are more conducive to customer installation and use, moreover, chain link fencing sets supplied would help the buyer to do DIY at home. Chain link fencing sets including all accessories like Fence posts, Support posts, Spanning wires, binding wires, tension bars, wire strainer, clamps for tension bars, also screws nuts and washers in stainless steel. assembling instruction and artwork provided for helping installation.

Bahan: HDG with Zinc coating 50--275 grams. And Pre-galvanized + PVC coated.

Warna : RAL 6005, RAL 9005.

Parameter Produk:

PAGAR RANTAI LINK:
Jenis	Kawat Dia. mm	Ukuran lubang mm	Tinggi cm	Panjang M
Zn	1.7-2.5	50 X 50	100	25
Zn	1.7-2.5	50 X 50	120	25
Zn	1.7-2.5	50 X 50	150	25
Zn	1.7-2.5	50 X 50	180	25
Zn	1.7-2.5	50 X 50	200	25
Zn + PVC	1.6/2.6~2.0/3.0	50 X 50	100	25
Zn + PVC	1.6/2.6~2.0/3.0	50 X 50	120	25
Zn + PVC	1.6/2.6~2.0/3.0	50 X 50	150	25
Zn + PVC	1.6/2.6~2.0/3.0	50 X 50	180	25
Zn + PVC	1.6/2.6~2.0/3.0	50 X 50	200	25

Set pagar rantai:

barang	SPESIFIKASI SET PAGAR RANTAI LINK :	Kita	Gambar
1	Tautan rantai, gulungan dengan 15m, hijau, ketebalan kawat termasuk lapisan PVC 2.8mm, jaring 60x60mm (atau sesuai instruksi pembeli), tinggi 800mm/1000mm/1250mm/1500mm	1
2	Fence post made from galv.steel tube then green powder coated, dia.34mm, thickness 1.2mm with 3 assembled wire holder made from PVC, closed wth green plastic cap.length 1200mm/ 1500mm/1750mm/2000mm.	7
3	Support post made from galv.steel tube then green powder coated, dia.34mm,thickness 1.2mm, length 1200mm /1500mm/ 1750mm, with PVC support cap and assembled clamps,screws and nuts stainless steel,washer etc.	2
4	Saringan kawat, galvanis. Dan dilapisi tenaga hijau, ukuran no.2,100mm.	3
5	Gulungan kawat spanninng, 50m, ketebalan 3,8mm setelah dilapisi bubuk.	1
6	Gulungan kawat pengikat, 25m, tebal 2,0 mm, tebal 0,8 mm, ditutup dengan tutup plastik.	1
7	Batang penegang, panjang 805mm, dia.10mm, tebal 8mm, ditutup dengan tutup plastik.	2
8	Klem untuk palang penegang, galvanis+ dilapisi bubuk, sekrup dan mur baja tahan karat, washer PVC.	6
9	Assembing instruction, 4 colour, 4 pages A4, artwork will be provided.	1
